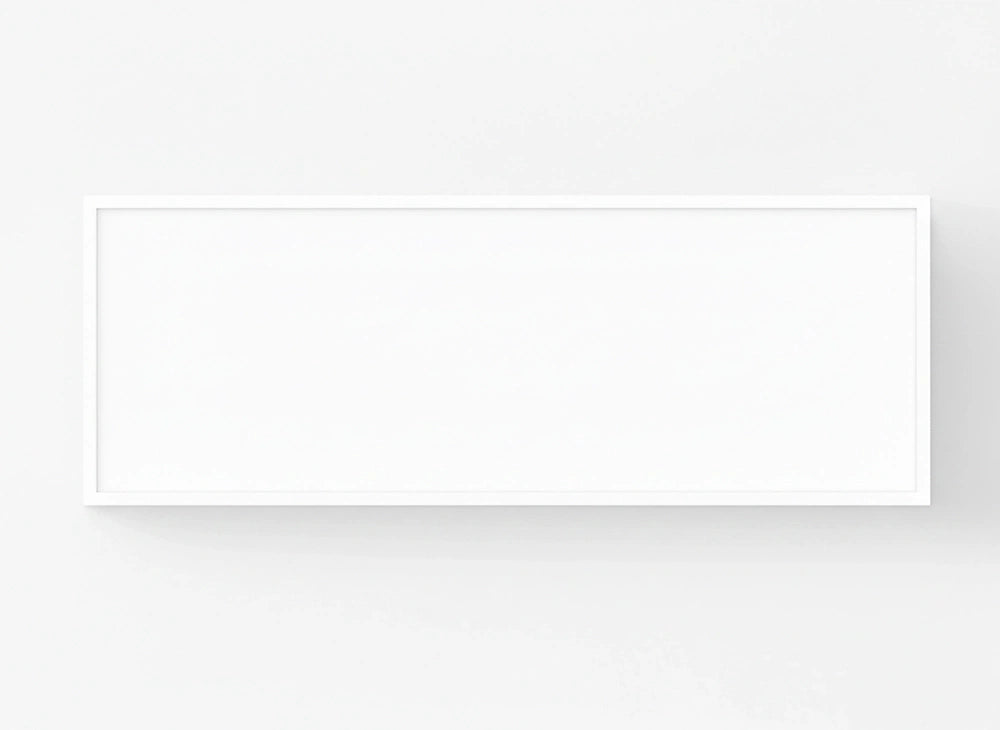

LED Panel 60x120cm 45W 140lm/W Adjustable Light Color (CCT)

LED Panel 60x120 cm 45W | Efficient lighting with UGR <19 and CCT

Optimize your lighting with this powerful 60x120 cm LED panel, designed for professional applications in offices, schools and commercial spaces. The panel consumes only 45 W and delivers a high light output of 6,300 lumens thanks to its efficiency of 140 lm/W. The backlit diffuser ensures uniform light without shadows, while the UGR value below 19 reduces glare during screen-based work.

Using the CCT switch on the driver, you can easily select between 3000K, 4000K or 6500K, allowing you to perfectly match the color temperature to the function of the space.

Key features

• Efficient performance: 140 lm/W for low energy consumption
• 6,300 lumens at 45 W: powerful general lighting
• UGR <19: comfortable, anti-glare lighting
• CRI ≥80: natural and reliable color rendering
• System size 60x120 cm: suitable for large ceiling tiles
• External LED driver: easy connection to 220–240 V
• CCT switch: adjustable 3000K, 4000K or 6500K
• Robust design: aluminum frame with PMMA diffuser

Energy savings and efficient use

Thanks to its high efficiency of 140 lm/W, this LED panel delivers strong light output with relatively low power consumption. Compared to older LED panels rated at 60–72 W, it achieves energy savings of up to 35% without compromising lighting comfort or brightness.

With an average use of 8 hours per day, the annual savings per panel can add up quickly, especially in larger installations.

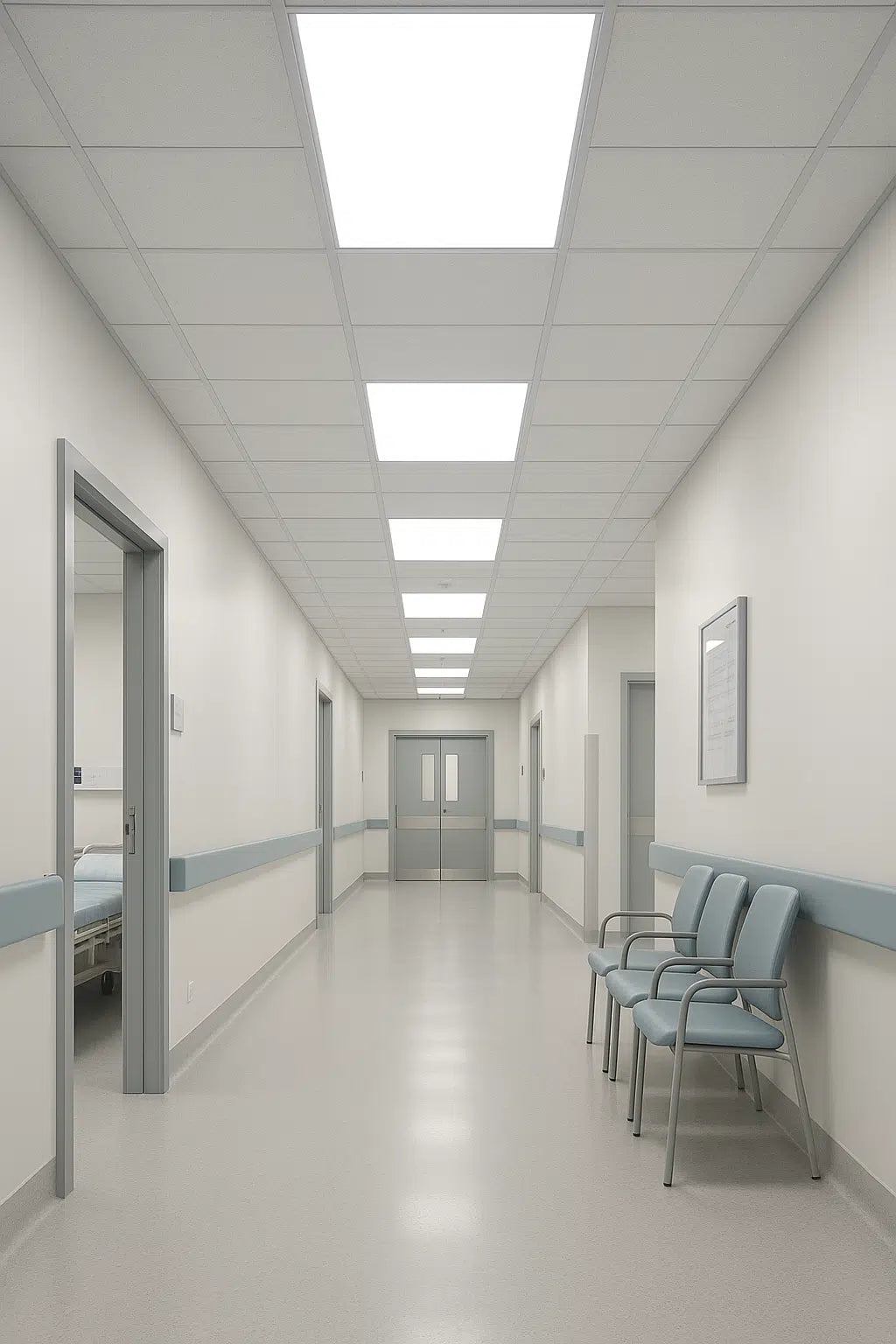

Light coverage and applications

With a wide beam angle of approximately 120°, one panel effectively illuminates 10 to 12 m² at a ceiling height of 2.7 meters. This makes the panel highly suitable for:

• Offices: calm, flicker-free working light
• Schools and meeting rooms: uniform lighting without shadows
• Retail and showrooms: bright and flexible general lighting
• Corridors and common areas: wide and even light distribution

Visual comfort and health with UGR <19

A UGR value below 19 means this LED panel meets the guidelines for screen-based workplaces. This reduces eye strain and supports a comfortable and productive working environment, even during prolonged use.

Installation and mounting

The external LED driver connects to standard mains voltage (220–240 V). Using the CCT switch on the driver, you can preselect the desired color temperature. The panel is suitable for installation in 60x120 cm suspended ceilings and can also be used with optional surface-mounted frames or suspension kits.

Why choose this 60x120 LED panel?

This LED panel combines high light output with visual comfort and flexible color temperature control. With 6,300 lumens, UGR <19, an efficient 45 W driver and CCT adjustment, it is a future-proof solution for professional lighting projects.
