Waterproof LED Tube Fitting 120 cm

Integrated LED or fitting for an LED tube of 120 cm?

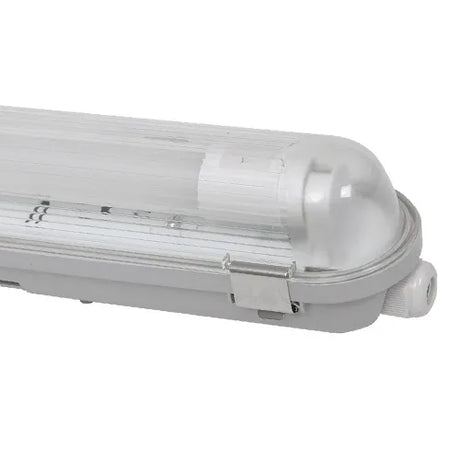

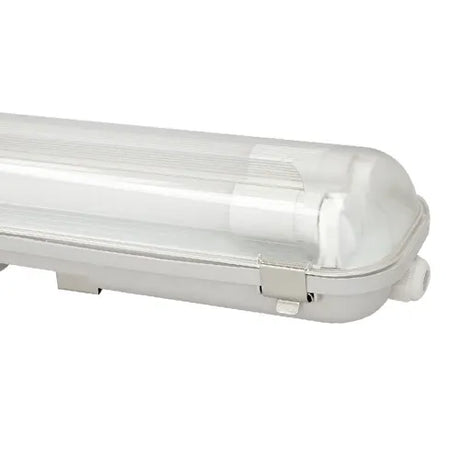

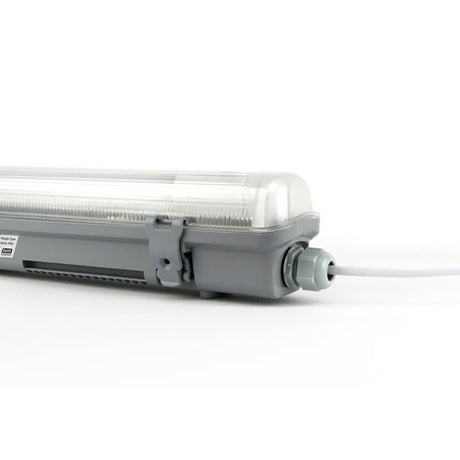

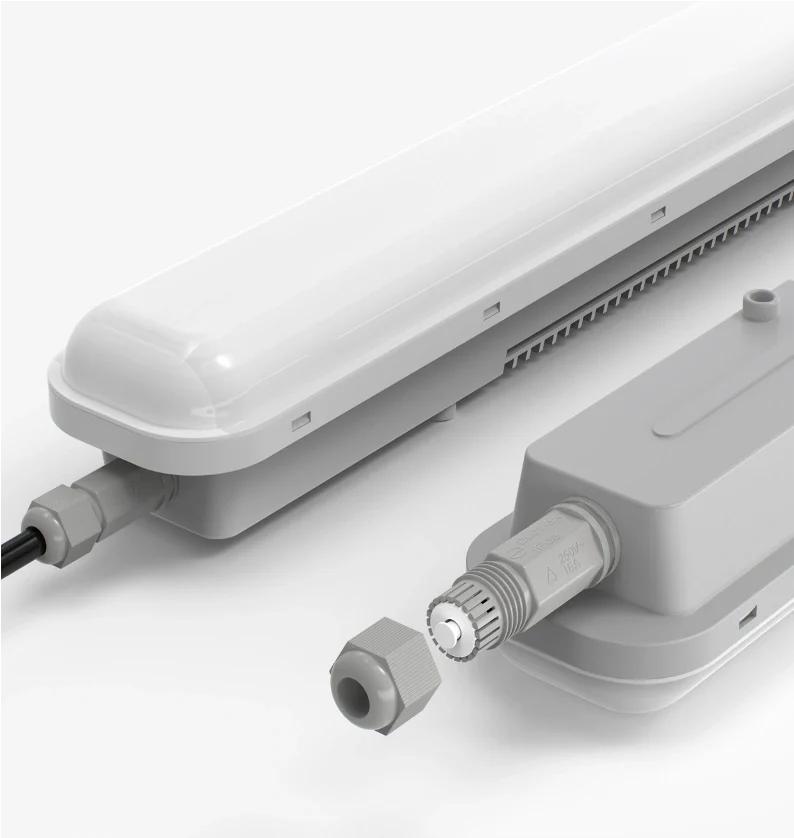

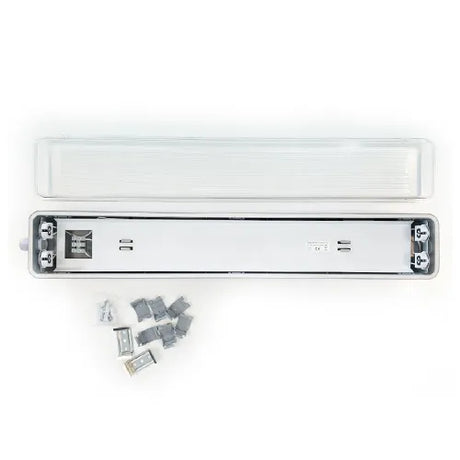

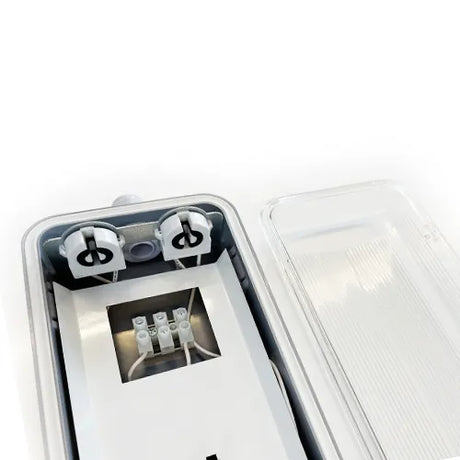

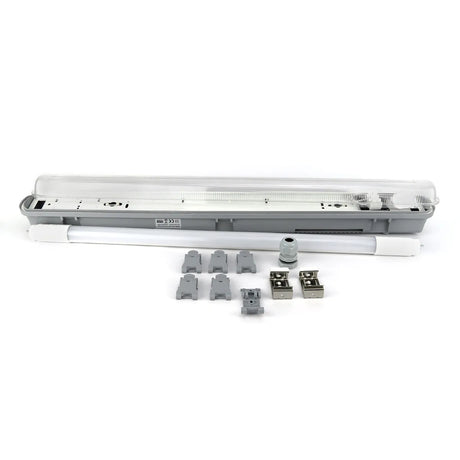

An LED batten of 120 cm has the LED built in: no tube, no starter and the highest efficiency. A waterproof fitting for LED tubes is an IP65 housing in which you place a 120 cm T8 LED tube yourself, single or twin. All versions are dust-tight and protected against water jets (IP65).

Six series of 120 cm LED battens

Choose EntryLine for affordable basic lighting, the Standard series with Philips driver for daily use, 190 or 200 lm/W for the lowest consumption, the sensor version for spaces not in constant use and DALI-2 for dimming in a lighting control system.

Linkable up to 30 units

With through-wiring you connect up to 30 LED battens of 120 cm on one supply cable. That saves cabling and installation time. Have the installation carried out by a qualified electrician.

How many 120 cm fittings do you need?

Rule of thumb: area per fitting in m² = lumens × 0.48 / required lux. Allow 200 lux for storage and car parks and 300 lux for a workshop. Request a quote for larger quantities.

Frequently asked questions about 120 cm waterproof LED fittings

How many lumens does a 120 cm LED fitting give?

4,320 to 6,840 lumens for an LED batten, depending on the series. The 190 lm/W version gives 6,840 lumens at 36W.

Which 120 cm LED fitting is the most efficient?

The 200 lm/W series: 5,000 lumens at only 25W, energy class B.

Can a 120 cm LED batten be connected directly?

Yes. An LED batten connects directly to 230V, without starter or ballast.

Do you supply for projects?

Yes. Volume pricing for larger quantities and payment on invoice for business customers. Request a quote and we will do the calculation with you.

Other lengths: 60 cm or 150 cm. All series: waterproof LED tube fittings.
