Mi-Light LED Strip Controller IP67 12-36V | 5-in-1

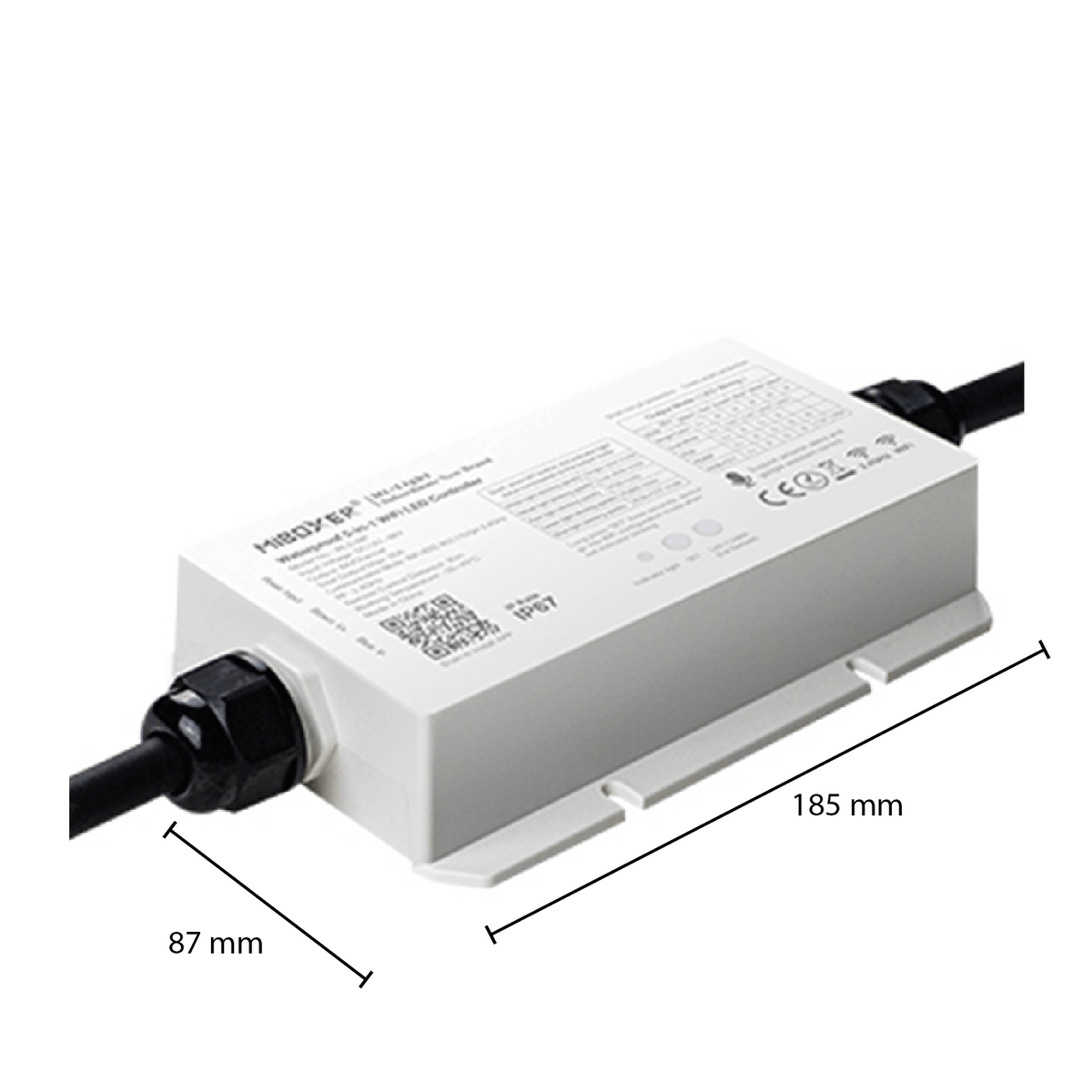

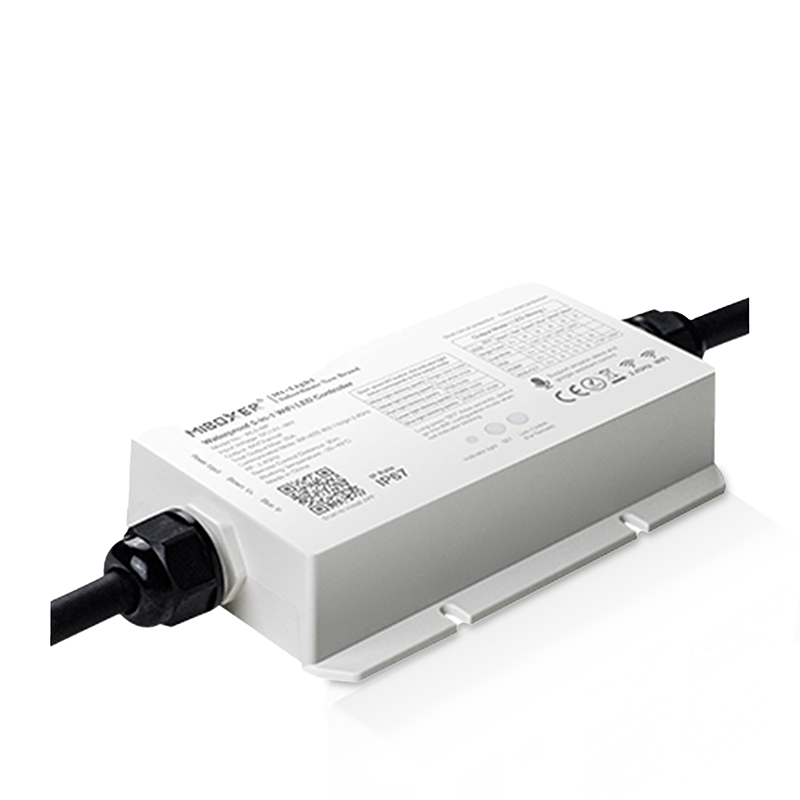

Mi-Light waterproof 5-in-1 LED controller with WiFi and 2.4 GHz (WL5-WP)

This waterproof Mi-Light LED controller operates LED strips wirelessly indoors and outdoors. It supports single-colour, tunable white (CCT), RGB, RGBW and RGB+CCT LED strips. Switch the lights on and off and adjust colour, white tone, brightness and effects through the MiBoxer app or a Mi-Light 2.4 GHz remote control.

Key features

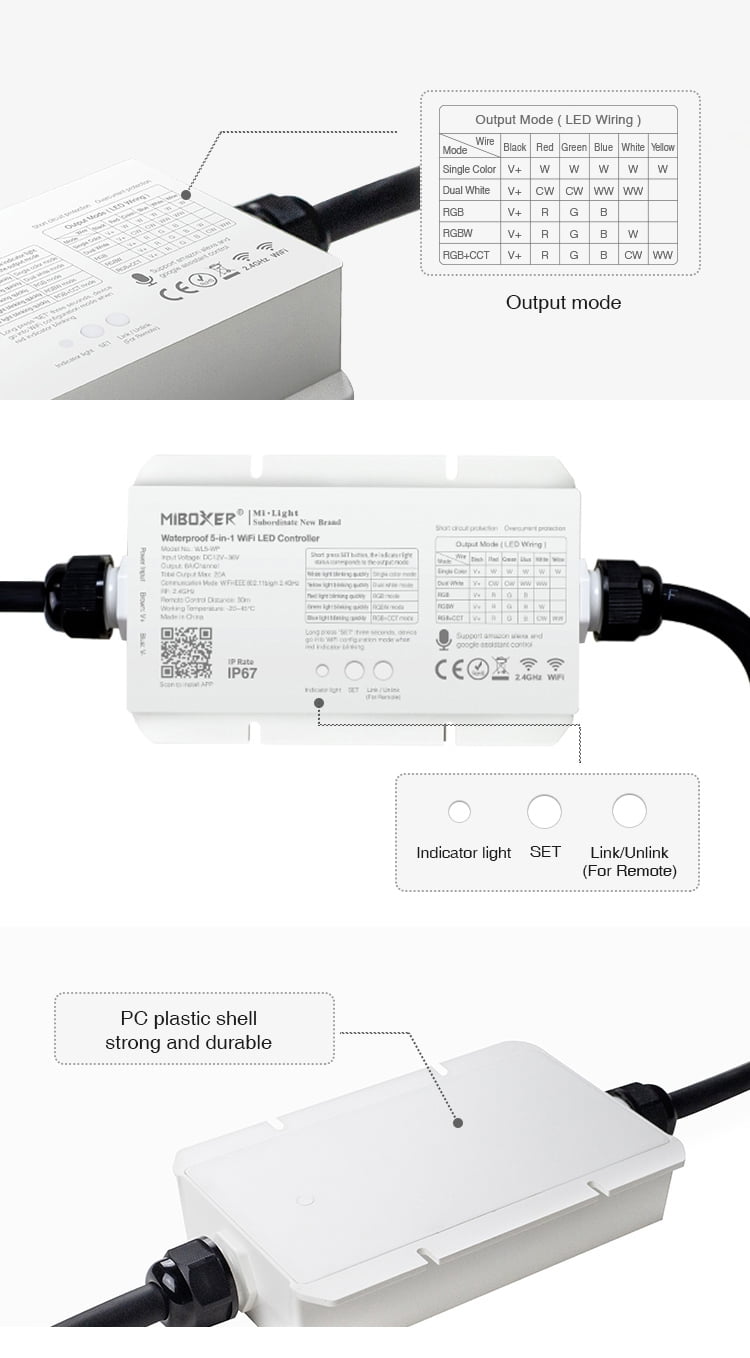

• 5-in-1 controller: supports single-colour, CCT, RGB, RGBW and RGB+CCT
• IP67 waterproof: dust-tight and resistant to temporary immersion, suitable for outdoors
• WiFi and 2.4 GHz RF: control through the MiBoxer app or Mi-Light remote control
• 12-36V DC: works with 12V, 24V and 36V LED strips
• Maximum 20 A total: sufficient capacity for larger installations
• 2-year warranty

Where can this controller be used?

This controller is suited to lighting installations exposed to moisture or weather, such as gardens, terraces, façades, canopies, bathrooms and boats. Thanks to its IP67 housing, the controller does not need a separate waterproof enclosure.

App and remote control

Connect the controller to the MiBoxer app via its built-in WiFi and operate your lights from a smartphone. You can also pair it with a Mi-Light 2.4 GHz remote control or wall control. The remote is sold separately.

Power capacity

The controller handles a maximum of 20 A in total. This corresponds to up to 240 W at 12 V, 480 W at 24 V and 720 W at 36 V.

Installation and connection

Connect the controller between a constant-voltage LED power supply and the LED strip. The power supply voltage must match the strip voltage. Select the correct output mode for the strip, such as RGB or RGB+CCT. Test all colours and functions after connection, before completing the installation.
