Mi-Light Magic LED Strip Controller WiFi and DMX 5-24V | Digital RGB

Mi-Light Magic LED strip controller SPIW5 for WiFi, SPI and DMX control

For smart Magic LED strip installations with SPI or DMX, use the Mi-Light SPIW5 controller. This 5-in-1 LED strip controller works on 5V to 24V DC and supports Single Color, CCT, RGB, RGBW and RGBCCT configurations.

Control is possible via WiFi, 2.4GHz RF, the TUYA Smart app and compatible Mi-Light remote controls such as C9 or B9.

Main features of this Mi-Light SPIW5 controller

• 5-in-1 LED controller suitable for Single Color, CCT, RGB, RGBW and RGBCCT
• 5-24V DC suitable for various low-voltage LED strip installations
• SPI and DMX protocol suitable for dynamic and professional light control
• WiFi and 2.4GHz RF control via TUYA Smart app and suitable remote control
• Maximum 10A output usable within the specified load limit
• 5-year warranty

Where to use this Magic LED strip controller

This controller is used for smart LED installations with dynamic effects, music modes, color settings and professional light control. Examples include living spaces, hospitality, shops, showrooms and decorative project lighting.

The combination of SPI, DMX, WiFi and RF makes the controller suitable for installations where multiple control methods are needed.

Compatible with C9, B9 and TUYA Smart app

C9 and B9 remote controls: this controller can be used with suitable Mi-Light controls for RF control.

TUYA Smart app: via WiFi, modes, brightness, speed, width, color and music functions can be adjusted.

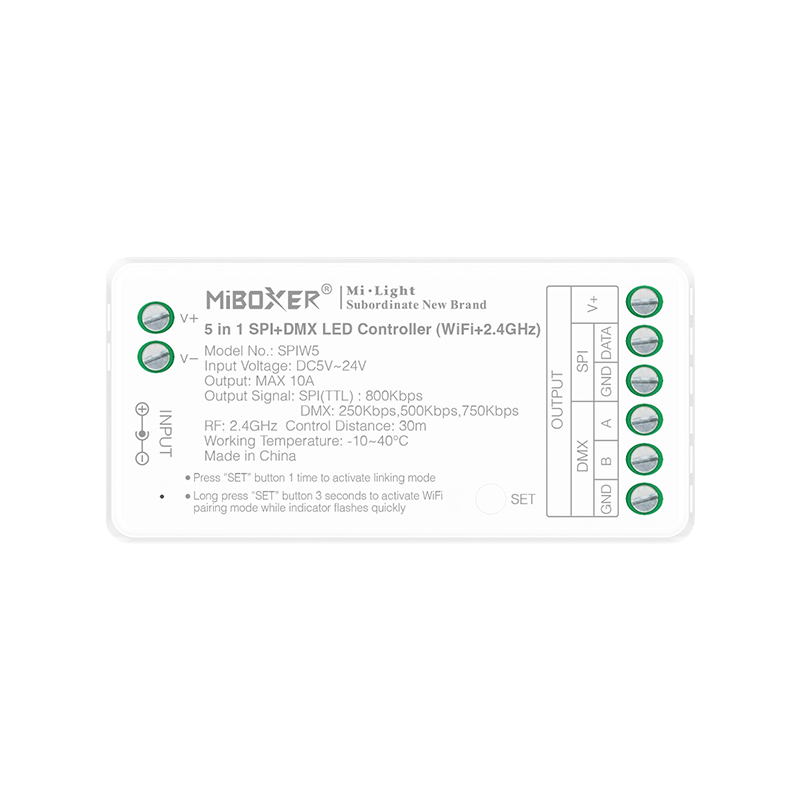

Installation and connection

Connect the controller to a suitable 5V to 24V DC power supply and connect the LED strip according to the chosen SPI or DMX protocol. The IP20 version is intended for dry indoor areas.

Use the controller only within the specified values of maximum 10A output.

Why choose this Mi-Light SPIW5 controller

This controller is suitable when Magic LED strips need to be controlled via WiFi, 2.4GHz RF, SPI and DMX within one compact controller.
