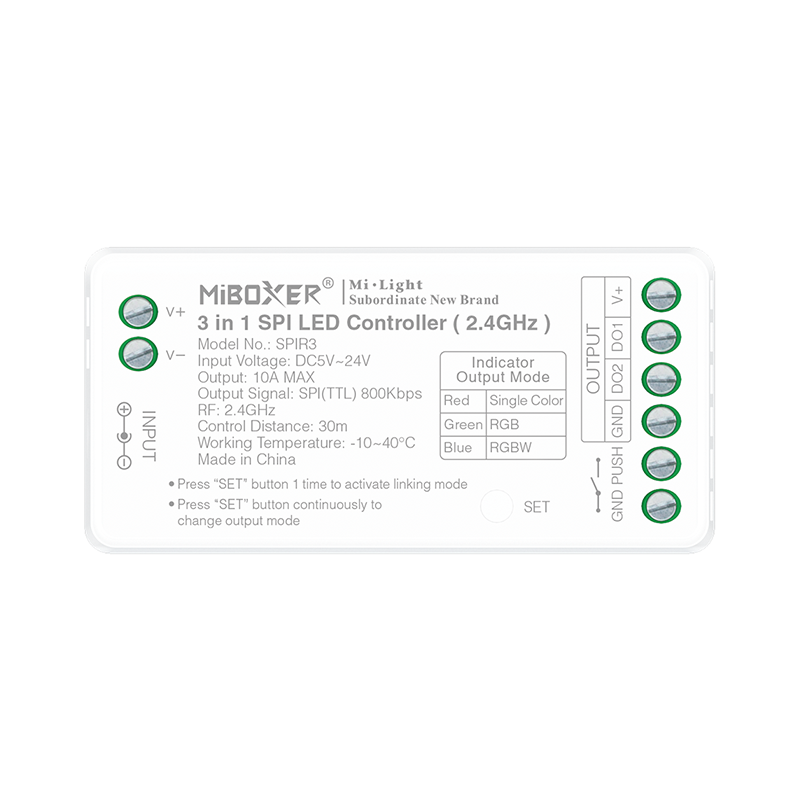

Mi-Light Magic LED Strip Controller 24V | Digital RGB

Mi-Light Magic LED strip controller for Pixel LED strips on 24V

For dynamic Pixel LED strip installations, use this Mi-Light Magic LED strip controller. This controller works on 24V DC and controls Pixel LED strips via an SPI TTL output signal.

The controller supports single-colour, RGB and RGBW modes. Control is possible with compatible C6 or B6 remote controls.

Main features of this Magic LED strip controller

• For Pixel LED strips suitable for dynamic Magic LED strip installations
• 24V DC designed for LED installations on 24 volt
• SPI TTL output data speed of 800Kbps for pixel control
• Compatible with C6 and B6 control via suitable Mi-Light remote controls
• 20 dynamic modes with options for colour and effect settings
• 2-year warranty

Where to use this Magic LED strip controller

This controller is used with Pixel LED strips and dynamic light lines in interiors, retail, hospitality and decorative projects where effects and colour settings are needed.

Depending on the selected mode, the controller can control single-colour, RGB or RGBW Pixel LED strips.

Compatible controls and pixel capacity

C6 or B6 remote control: these controls allow mode, colour, brightness, on and off time and dynamic functions to be adjusted.

Pixel capacity: the controller supports single-colour up to 2048 pixels, RGB up to 1536 pixels and RGBW up to 1024 pixels.

Installation and connection

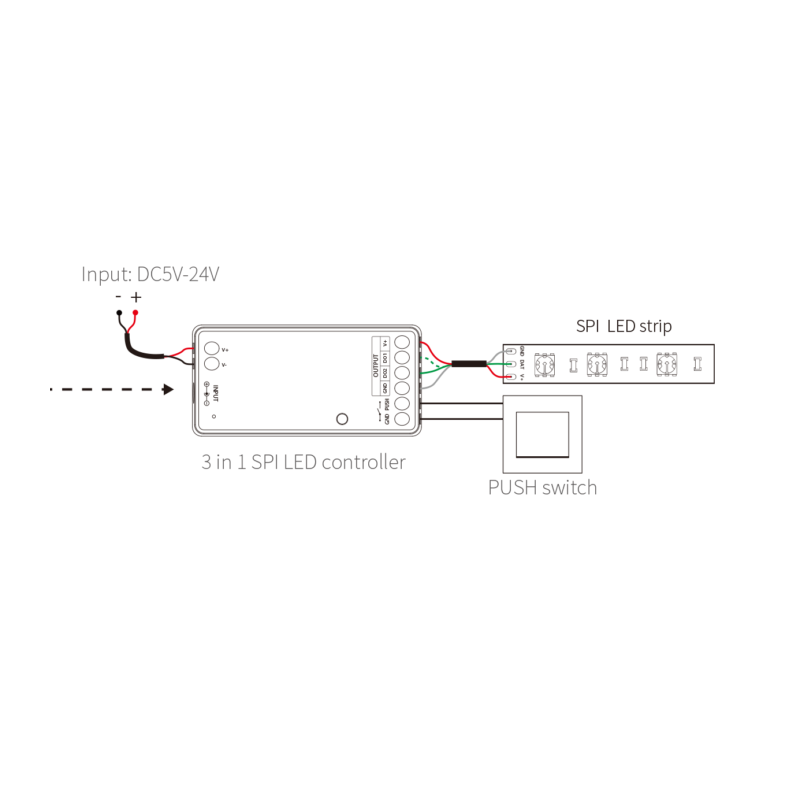

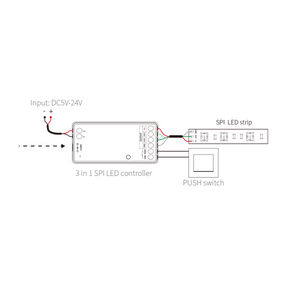

Connect the controller to a suitable 24V DC installation and connect the Pixel LED strip according to the SPI wiring diagram. Check in advance whether the number of pixels stays within the specified capacity.

Select the correct output mode for the LED strip used via the SET button.

Why choose this Mi-Light Magic controller

This controller is suitable when Pixel LED strips need to be controlled wirelessly with dynamic modes, pixel control and compatible C6 or B6 remote controls.
