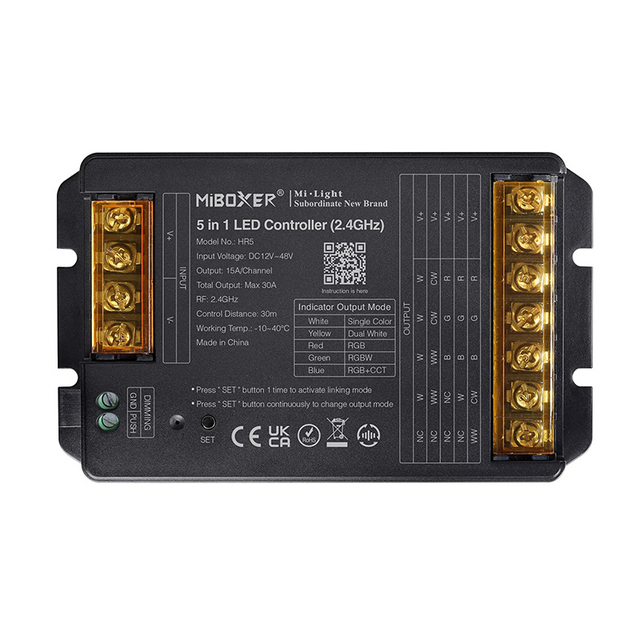

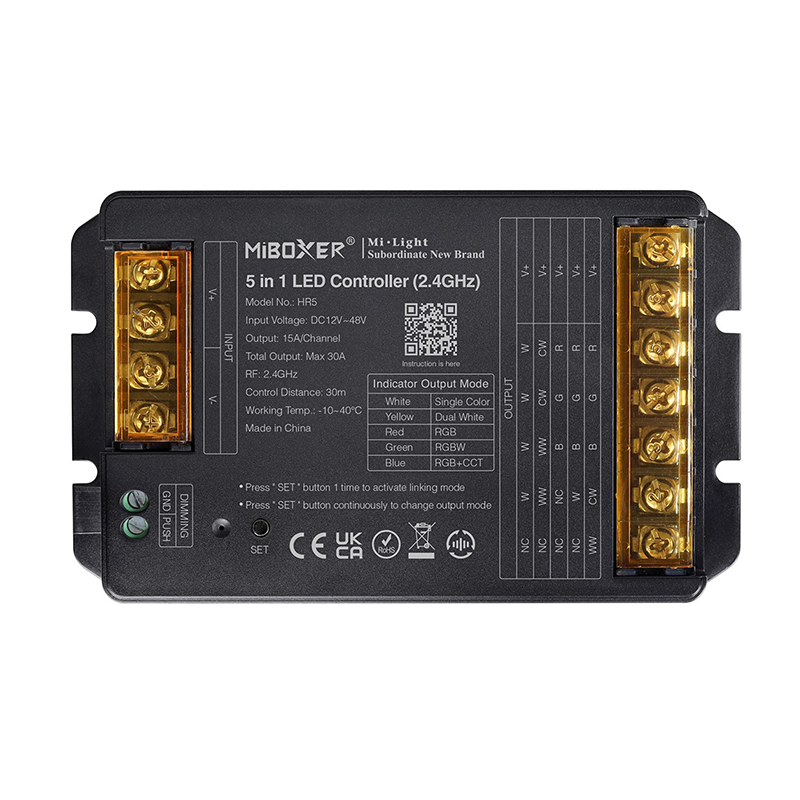

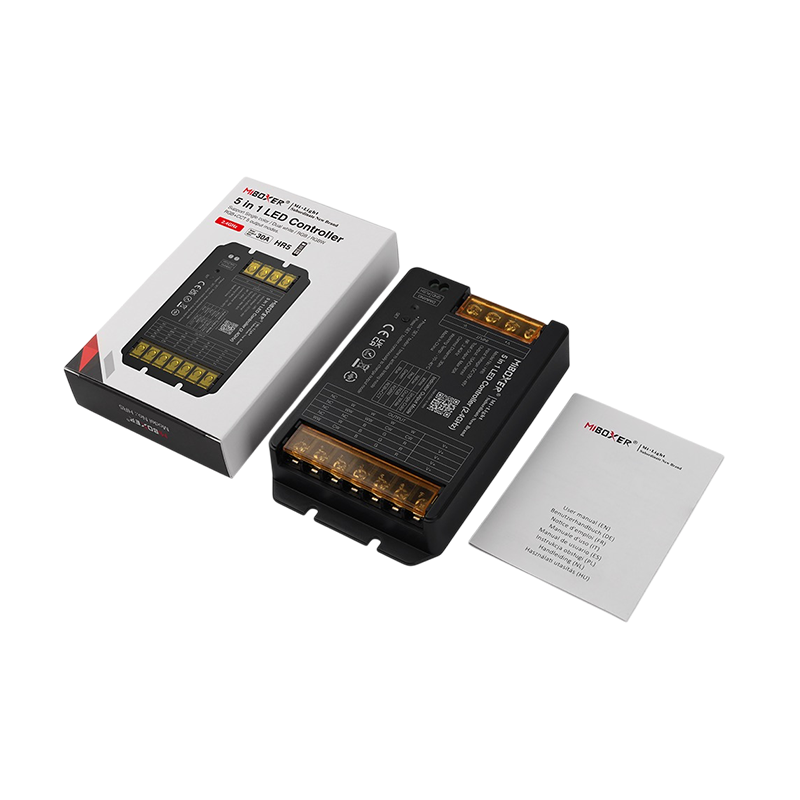

Mi-Light LED Strip Controller 12-48V | 5-in-1

9.2/10 reviews Article no. ST1034

Mi-Light LED strip controller 5-in-1 for flexible 12V to 48V LED installations For one controller that can control several types of LED strips, use this Mi-Light LED strip controller 5-in-1. The controller supports Single… View full description ↓

For five strip configurations
12V to 48V DC
RF, PUSH and DMX possible

€39⁶³ Excl. VAT

€47⁹⁵ Incl. VAT

16 in stock

Order before 3 pm, ships today

Grotere aantallen nodig? Vraag eenvoudig een offerte aan.

Secure and easy payment with the method you prefer.

Free shipping in NL & BE from €69.95
Available directly from stock
Rated 9.2/10 by customers
Up to 5 years warranty

Mi-Light LED strip controller 5-in-1 for flexible 12V to 48V LED installations

For one controller that can control several types of LED strips, use this Mi-Light LED strip controller 5-in-1. The controller supports Single Color, Dual White, RGB, RGBW and RGB+CCT and works from 12V to 48V DC.

Control is via 2.4GHz wireless technology with suitable Mi-Light or MiBoxer remote controls. App control is possible with an additional 2.4GHz gateway.

Main features of this Mi-Light 5-in-1 controller

5-in-1 function suitable for Single Color, Dual White, RGB, RGBW and RGB+CCT
12-48V DC suitable for various low-voltage LED strip installations
Maximum 30A output suitable for powerful installations within the specified limit
2.4GHz control wireless pairing with Mi-Light and MiBoxer controls
PUSH dimming and DMX possible DMX only with FUTD01 transmitter and 5-channel output
2-year warranty

Where to use this 5-in-1 LED strip controller

This controller is used with LED strip installations in homes, hotels, shops, hospitality, showrooms and offices. One controller can be set to the type of LED strip used in the installation.

This makes it suitable for projects where flexibility and later expansion are important.

Compatible controls within the Mi-Light system

Mi-Light and MiBoxer remote controls: the controller works with suitable 2.4GHz controls. With a gateway, app control and smartphone control can be added.

DMX function: DMX control only applies in combination with a FUTD01 transmitter and 5-channel output.

Installation and connection

Connect the controller between the LED power supply and the selected LED strip. Then select the correct output mode for Single Color, Dual White, RGB, RGBW or RGB+CCT.

Use the controller only within the specified values of 12-48V DC and maximum 30A output.

Why choose this Mi-Light 5-in-1 controller

This controller is suitable when one controller needs to be used for different types of LED strips within the Mi-Light or MiBoxer ecosystem.
