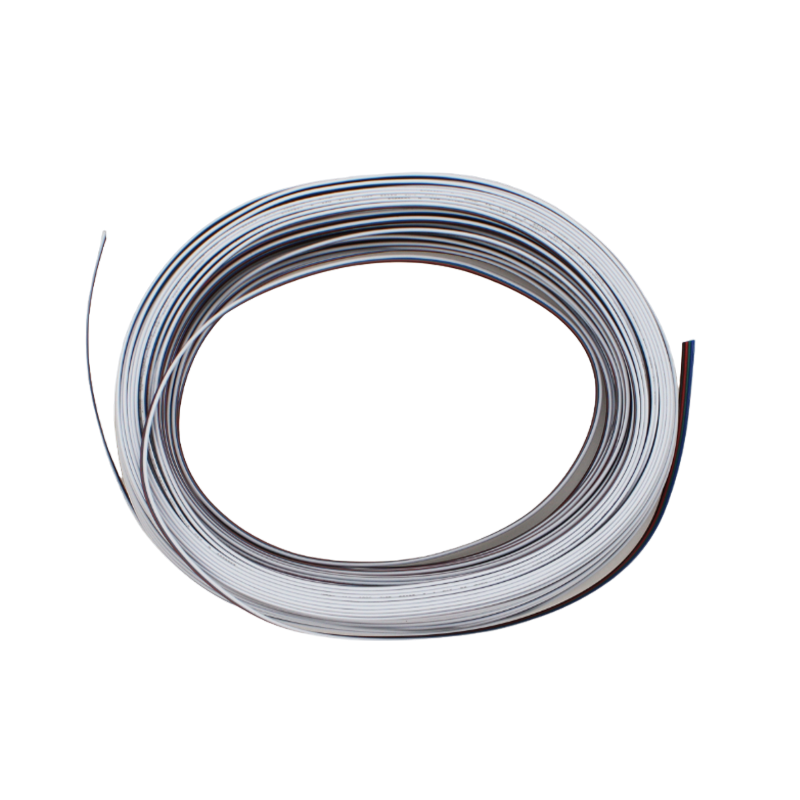

LED Strip Cable 5-Core | 10m

Five-core LED strip cable for 12V and 24V RGBW LED strips

Use this five-core LED strip cable to connect or extend RGBW strips. It carries separate conductors for red, green, blue, white and the common connection.

The cable is suitable for 12V and 24V low-voltage installations using an RGBW strip and a compatible controller.

Key features of this five-core LED strip cable

• Five cores for RGBW LED strips with colour and white channels
• For 12V and 24V for low-voltage LED strip installations
• 24AWG cable 0.205 mm² per conductor

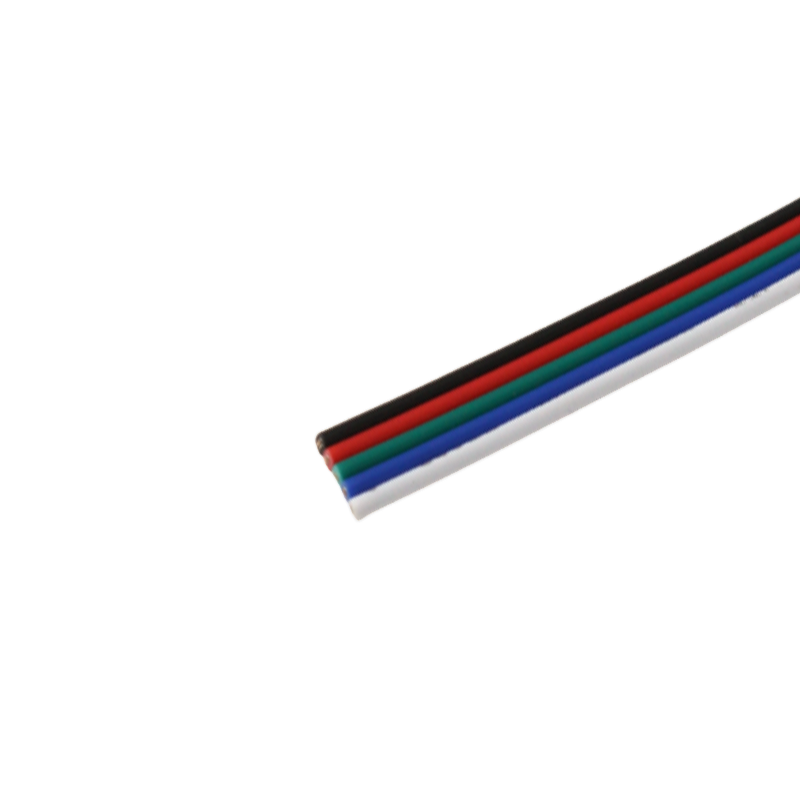

• Black, red, green, blue and white clear colour coding for RGBW connections
• Copper and PVC flexible cable for routing through profiles and cable trunking
• 3-year warranty

Where to use this LED strip cable

This cable is used with RGBW LED strips, RGBW COB strips and other low-voltage installations needing five conductors.

It is suitable for extending the distance between the controller and strip or concealing connections neatly.

Available in several lengths

This cable is offered as a product with 1, 2, 5 and 10-metre length variants, so you can match the cable to the installation.

The cable can be cut to length, provided the conductors are correctly connected to the controller and strip.

RGBW connection with five cores

RGBW: use this cable for strips with red, green, blue and white channels. RGBCCT strips need more conductors, so this cable is not sufficient.

Always check that the controller's channel order matches the strip connections.

Installation and connection

Connect the conductors according to the markings on the RGBW controller and LED strip. Check polarity, channel order and load before switching on the supply.

Longer cable runs can cause voltage drop. Select the conductor size and cable length for the connected load.

Why choose this five-core cable?

Five-core LED strip cable with 24AWG conductors. Black, red, green, blue and white colour coding makes RGBW wiring easier to identify.
